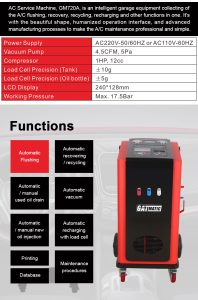

Description
The GM-720A-YF is also fully automatic and maintenance-friendly, to save time and
increase workshop efficiency, designed and developed specifically to be one of the most
competitively priced units within our range. The GM-720A-YF has been designed to
make life easier in the workshop, enabling quick and reliable service and maintenance
with a range of functions at your fingertips.
Features
1. For R1234yf refrigerant
The R-1234yf is much more reactive than R-134a. On the positive side, this higher
reactivity is why R-1234yf is so much more friendly to the environment. It tends to
react with other gases in the atmosphere and break down within a couple of weeks.
2. With a stronger plastic shell
This air conditioning service machine can adapt to 0~50℃. Even in a bad working
environment, it can still work normally.

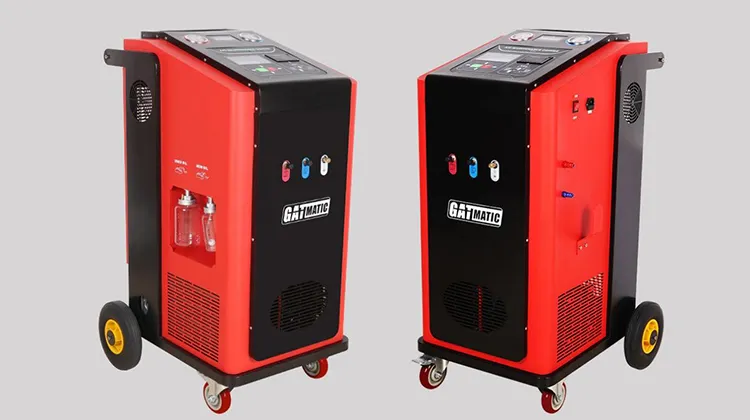

3. Two colors can be chosen
There are two different colored refrigerant recovery machines, red and blue. Customers
can choose their favorite colors.
4. Without manual operation valve
5. LCD display and Metal Dome
6. Friendly interface
Function s
1. Timing pulse flushing
2. Automatic recovering/recycling
3. Automatic/manual used oil to drain
4. Timing vacuum
5. Manual new oil injection
6. Quantitative recharging
7. Maintenance procedure
Specification
For Refrigerant
R1234yf
Voltage
AC220V~50Hz/AC220V~60Hz/AC110V~ 60Hz
Current
7/10A
Compressor
12.12cc
Vacuum Pump
4.5CFM, 5Pa
New Oil Bottle
300ml
Used Oil Bottle
500ml
Tank Capacity
12L
Load Cell Precision(tank)
土10g
Load Cell Precision(bottle)
土5g
Work Max. Pressure
20bar

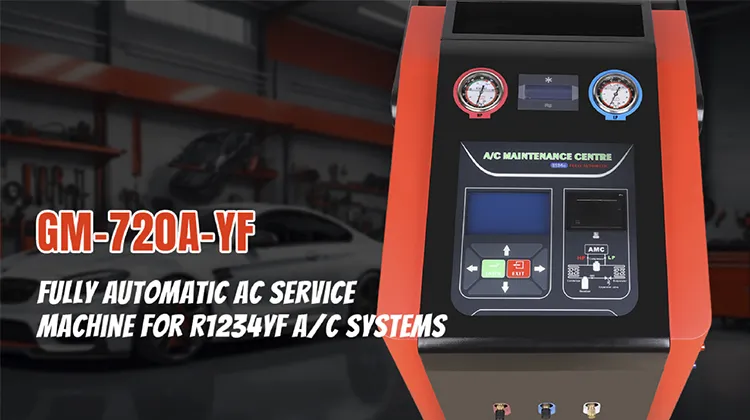

LCD Display
240*128
Size(LxWxH)
640x640x1270mm
Gross Weight
106kg
