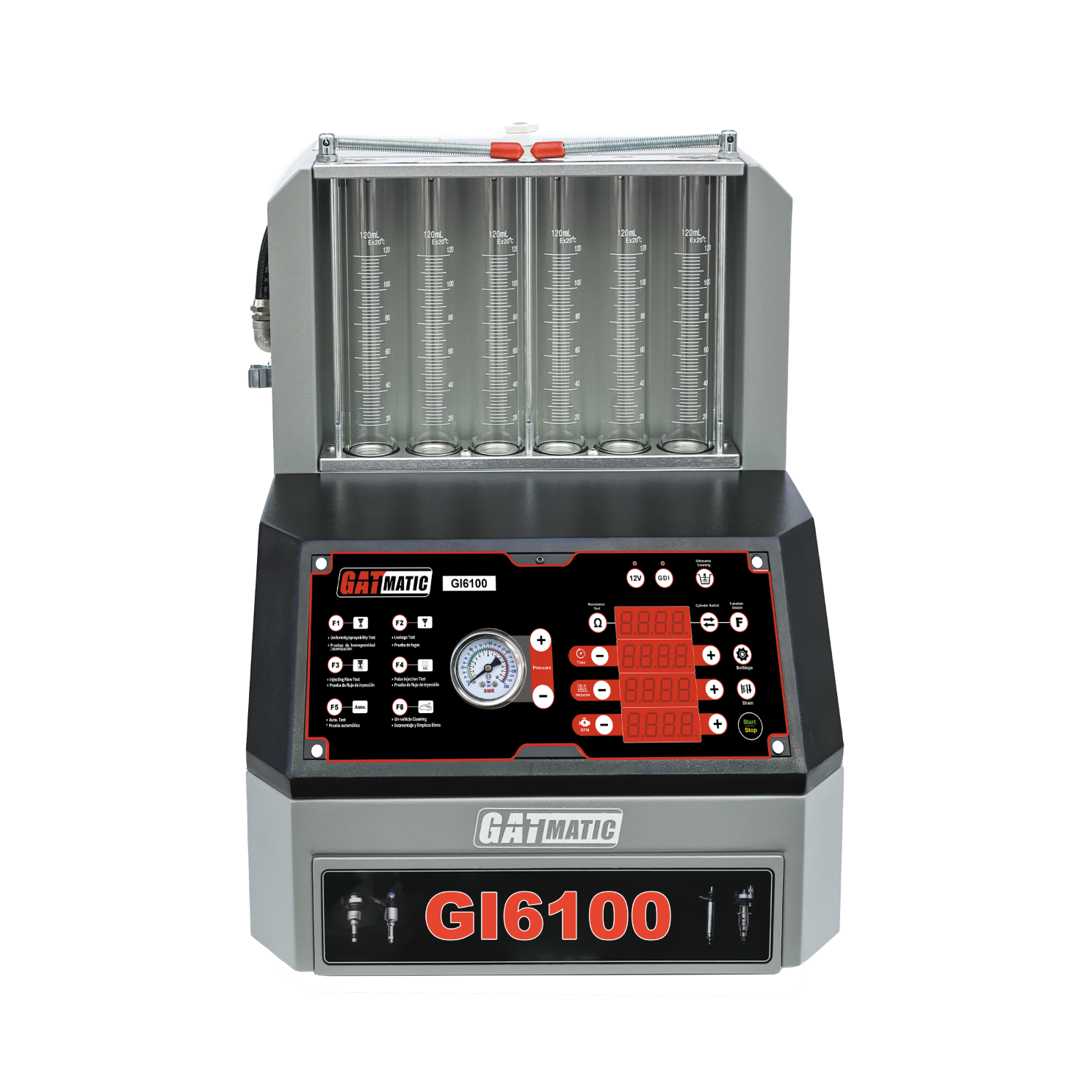

GI6100 GDI Injector Cleaner & Tester
— Clear Digital Display with Simple and Reliable Operation
— 6-cylinder Injector Testing Capability
— Supports GDIand Traditional Injectors
— Accurate Leakage, Flow and Spray Pattern Testing
— Wide RPM Simulation for Real Engine Conditions
— Real-time Pulse Width Adjustment for Precise Control
— Integrated Ultrasonic Cleaning Removes Carbon Deposits
— Built-in Auto Drain and Storage Drawer for Convenience

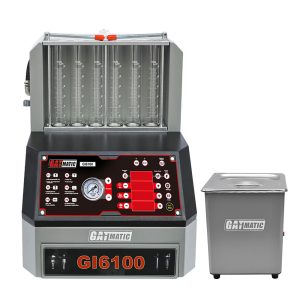

The GI6100 Fuel Injector Cleaner & Tester is a professional 6-cylinder system designed for efficient cleaning and precise diagnostics. Equipped with an intuitive LED display, it supports GDI and conventional injectors. By combining ultrasonic cleaning with comprehensive testing-including spray pattern, leakage, flow rate, and resistance-it enables accurate performance evaluation. With adjustable RPM simulation and on-vehicle cleaning capability, the system replicates real engine conditions to restore optimal injector efficiency.
Features

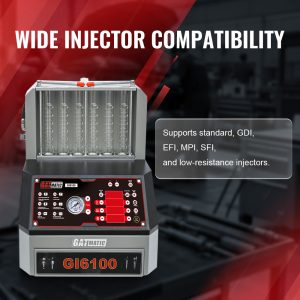

Wide Injector Compatibility
Supports a wide range of injector types, including standard, GDI, EFI, MPI, SFI, and low-resistance injectors.

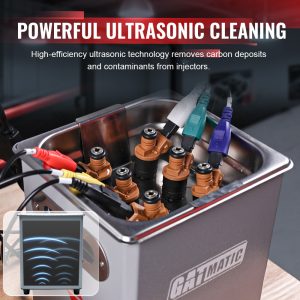

Powerful Ultrasonic Cleaning
High-efficiency ultrasonic technology removes carbon deposits and contaminants from injectors.

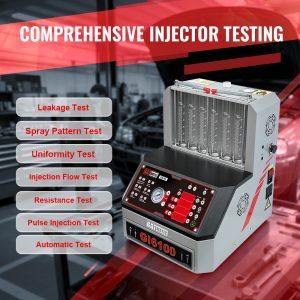

Comprehensive Injector Testing
Performs leakage, spray pattern, uniformity, flow, resistance, and automatic tests.
On-Vehicle Cleaning Function
Allows injector cleaning without removal, improving service efficiency.

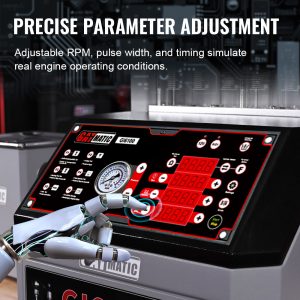

Precise Parameter Adjustment
Adjustable RPM, pulse width, and timing simulate real engine operating conditions.

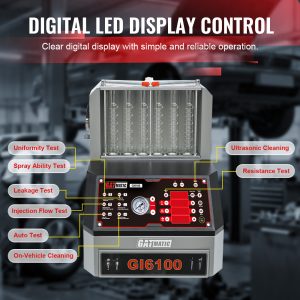

Digital LED Display Control
Clear digital display with simple and reliable operation.

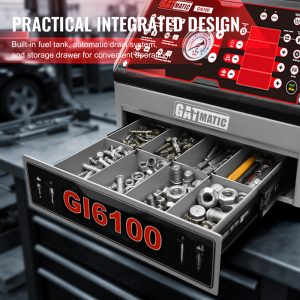

Practical Integrated Design
Built-in fuel tank, automatic drain system, and storage drawer for convenient operation.

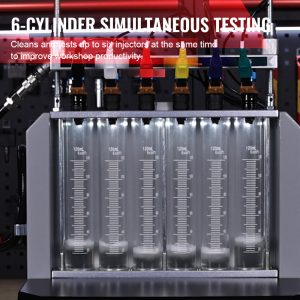

6-Cylinder Simultaneous Testing
Cleans and tests up to six injectors at the same time to improve workshop productivity.
Advantages
- Clear Digital Display with Simple and Reliable Operation
- 6-cylinder Injector Testing Capability
- Supports GDIand Traditional Injectors
- Accurate Leakage, Flow and Spray Pattern Testing
- Wide RPM Simulation for Real Engine Conditions
- Real-time Pulse Width Adjustment for Precise Control
- Integrated Ultrasonic Cleaning Removes Carbon Deposits
- Built-in Auto Drain and Storage Drawer for Convenience
| Power Supply | 100-240V/50-60Hz |
| Input Power | 300W |
| Ultrasonic Cleaner Power | 100W |
| Resistance Test Accuracy | 0.1Ω |
| Simulated PRM Range | 100～9900rpm |
| Pressure Range | 0-12 bar |
| Pulse Width Range | 0.1～25ms, step: 0.1ms |
| Timing Range | 0～9900s, step:50s |
| Fuel Tank Capacity | 2000ml |
